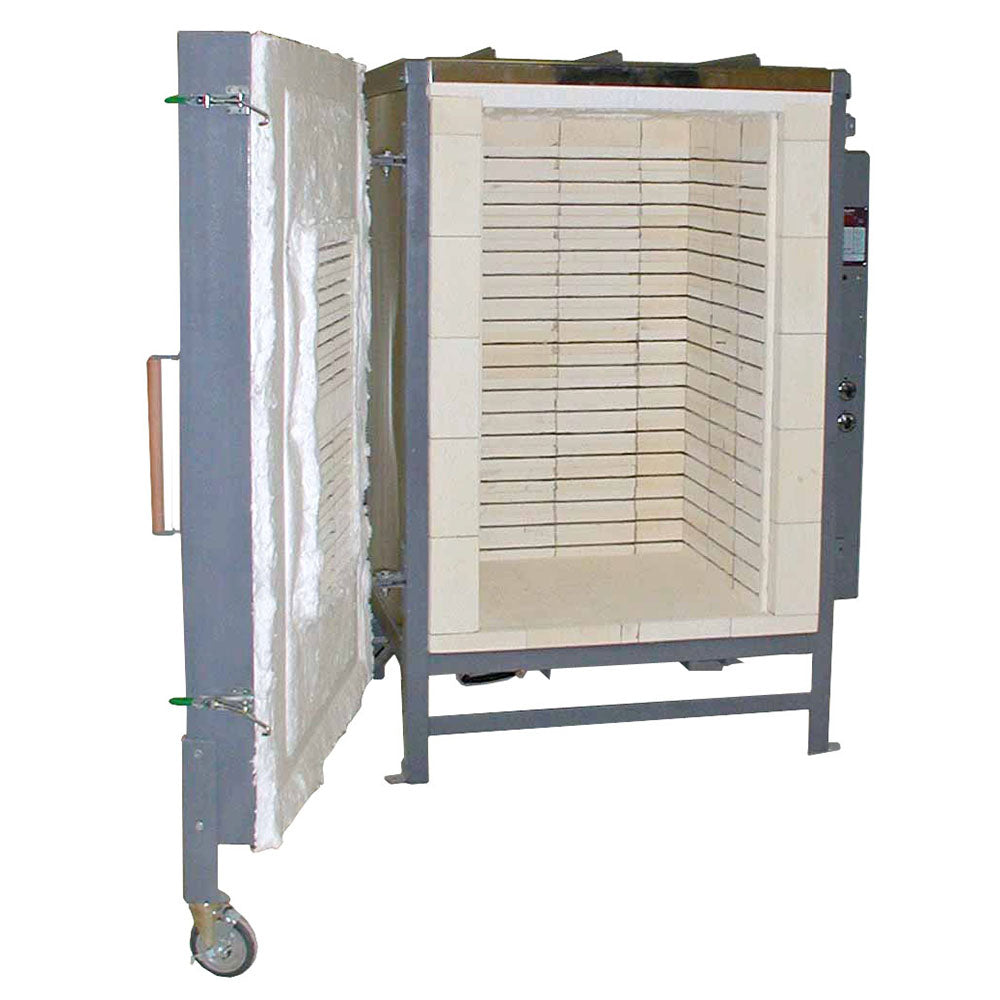

Olympic Kilns Model FL20E 240 or 208 volt – Front loading Commercial 20 cubic feet electric kiln
The FL20E model comes equipped with a pilot light, welded heavy angle iron frame, stainless steel jacket, and 12 key digital Bartlett KilnStar controller for more ramp-hold user programs and multiple features including delay start, preheat, cone offset, skip step, and many more for precise firings every time. Messages and Information are available for reviewing a firing profile before or during the firing, viewing the current segment the firing is in, and cone table for easy lookup of temperature and cone number equivalents. The FL20E is equipped with its own breaker box for easy access, safety, and lockout.
Additional options include upgrading to the Genesis touchscreen controller, 480-volt, Type S thermocouple, castors, vent, and much more!
The FL20E furniture kit includes 4 layers of shelving – 8 each of 13″ x 26″ x 1″ rectangle shelves, 8 each of 4, 6, 8, 10-inch large square posts, and a 5 lb. bag of kiln wash. Choose the FL20 furniture kit or create your own furniture kit or add more shelves and posts by going to the Electric Kiln Furniture Kits under the Accessories Tab.
Inside Dimensions: 28″ wide x 28″ deep x 45″ high, fires to cone 10/2350°F
| Model | FL20E | FL20E Car Kiln | Wiring Specifications | 1 Phase | 3 Phase | ||
|---|---|---|---|---|---|---|---|
| Inside Chamber Dimensions w x d x h (inches) | 28 x 28 x 45 | 28 x 28 x 45 | Volts | 208 | 240 | 208 | 240 |
| Cubic Feet | 20 | Amps | 92 | 80 | 62 | 53 | |
| Outside Dimensions with Stand or Frame w x d x h (inches) | 52 x 50 x 69 | 58 x 62 x 67 | Watts | 19,200 | |||
| Brick Thickness | 4.5” +1″ Fiber | Breaker Required | 100 Amp | 100 Amp | 80 Amp | 70 Amp | |
| Maximum Temperature | Cone 10 – 2350°F/1288°C | Plug Configuration | Direct Wired | ||||
| Est. Shipping Wt. | 1,675 lbs. | 2,400 lbs. | Copper Wire Size | #4, #2 if the circuit is longer than 40 ft | |||
